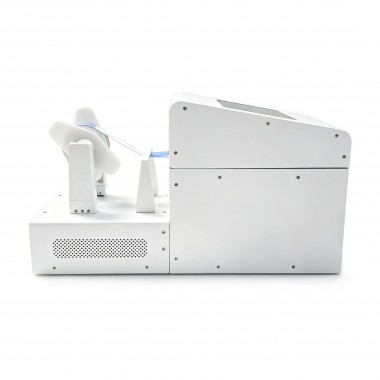

BB720A UHF RFID Wristband Smart Printer Product Specification

Detailed Specifications

1.Printing Specifications

Printing Method:Thermal

Print Resolution: 203 dpi

Maximum Print Width: 54 mm

Maximum Print Speed: 5 ips (120 mm/s)

Wristband Width Range: 19 mm - 54 mm

Label Thickness Range: 0.06 mm - 0.25 mm

Core Inner Diameter: 25.4 mm (1 inch)

Maximum Outer Diameter: 190 mm

2.RFID Writing

• Supports printing and writing; optional modes include print only, RFID write only, or both print and write.

• Printing and UHF writing, supporting writing to chips of various corresponding protocol models for UHF ultra high frequency.

• Supported protocols and chip types (including but not limited to the following).

• Supported Protocols:

- UHF: EPC Global UHF Class 1 Gen 2/ISO 18000-6C

• Supported Chips:

- Chips compatible with EPC Global UHF Class 1 Gen 2/ISO 18000-6C protocol are supported, including Monza 3, Monza 4D, Monza 4E, Monza 4QT, Monza 5, Monza R6, Monza R6-P, Monza R6-A, Monza S6-C, UCODE G2iL, UCODE G2iM, UCODE 7, UCODE 7m, UCODE 7xm, UCODE 7xm+, UCODE 8, UCODE 8m, UCODE DNA, Alien Higgs 3, Alien Higgs 4, Alien Higgs-EC(H5), etc.

• Operating Frequency:

- UHF: 865-868 MHz (EU), 902-928 MHz (FCC), customizable according to regions.

• Programming Distance: 0 - 5 mm (depending on label medium and antenna design).

• Programming Power: Adjustable, up to +30 dBm (UHF).

• Programming Speed: Up to 60 tags per second (depending on tag chip and data volume).

3.LCD Display Screen

Screen Size:  7 inches

Resolution: 1024 * 600

Aspect Ratio: 16 : 9

Display Color: 16.7 M

Contrast Ratio: 1000 : 1

Response Time:4ms

Brightness:250cd /㎡

Viewing Angle:≥ 160°

4.Touch Screen

• Touch Method: 10-point touch

• Working Mode: Capacitive

5.Host Configuration

• CPU: Cortex-A76+Cortex-A55 Octa-core 2.4GHz

• Random Access Memory (RAM): 8G DDR

• Read Only Memory (ROM): 128GB

• Operating System: Android 12

6.Network Connection

• Ethernet: Supports 1000M / 100M / 10M adaptive Ethernet

• Wi-Fi: Supports WIFI6

• Bluetooth: Supports BT-5.4

7.Interfaces

• USB Port: 2 standard USB2.0 Type-A ports, fixed host mode, 1.5A current limiting

• Network Port: 1 RJ45 port, 10/100/1000M network port

• WiFi Antenna: 1 piece

8.Sample APP Operation Interface

(Support for Secondary Development)

9.Physical Specifications

• Dimensions (W x D x H): 488 mm x 240 mm x 276 mm

• Casing Material: Metal body

• Operating Environment:

- Temperature: 5°C to 40°C

- Humidity: 20% to 80% RH (non-condensing)

• Storage Environment:

- Temperature: -20°C to 60°C

- Humidity: 10% to 90% RH (non-condensing)

• Power Supply Requirements: AC 100-240V, 50/60 Hz, automatic switching.

• Programming Support: Provides SDK (supporting Java, Kotlin) and native Android.

Standard Configuration

• BB720A UHF Main Unit: 1 piece

• Power Cord: 1 piece

• WiFi Antenna Rod: 1 piece

• BB720A UHF Printing Software (Standalone Version): 1 set

• Wristband Rotating Shaft Kit: 1 set

Warranty and Support

• Warranty Period: 1-year warranty for the whole machine, 6 months (or 50,000 km print length) for the print head.

• Technical Support: Provides telephone and online technical support.

• Training: Provides free on-site or online operation and maintenance training.
